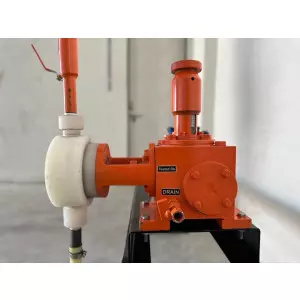

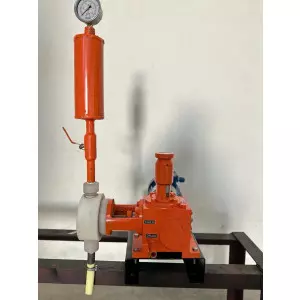

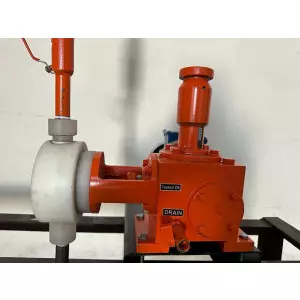

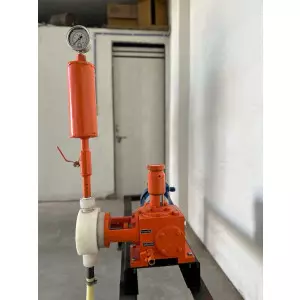

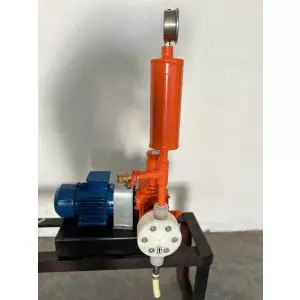

Mechanically Actuated Diaphragm Pump

AvailabilityIn Stock
CategoryDiaphragm Pumps, Chemical Dosing Pumps, Metering Pumps, Dosing Pumps, Dosing Pump Spare Parts
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Mechanically Actuated Diaphragm Pump Details

@Chemical Dosing Pump

Type: Mechanically Actuated Diaphragm Metering Pumps

Features:

  • Very economical.
  • PTFE Diaphragm.
  • Remote control fouling is available.
  • Easy to operate.
  • Less maintenance.

Application Sectors:

Chemical Effluent / Water TreatmentPetro-Chemical
Sewage TreatmentPulp & Paper
Power PlantFood
Pharmaceutical PlantBeverages
PaintMetal & Steel Plant
Oil PlantSugar Industries

Standard Models:

Sr. No.Pump ModelCapacity Max (LPH)Pressure Max (Kg/cm2)
01PRMD - 1505
02PRMD - 22005
03PRMD - 35004
04PRMD - 410003

Temperature Range: 30 Degree Celsius to 300 Degree Celsius.

MD Series – Non-Leakage Pump Standard Models:

Typical Characteristics:

The volume of liquid (Flow Rate) to be delivered can be varied by simple micrometric adjustment of the metering system. Premix metering pumps are positive displacement type, hence, are self-priming in operation. They have low NPSH requirement. And are capable of delivering precise volume of liquid in specified time.

Pump Design, Manufacturing & Performances Test as per International Standard of API 675*
Metering pumps have flow rate, which is:

  • Independent of discharge pressure.
  • Linear in proportion to stroke length.
  • Digital in nature.
  • Positive displacement type, hence are self-priming in operation

Key Design Features:

  • Premix make PRMD type Diaphragm glandless pumps, with hermitically sealed Diaphragm allow leak free operation.
  • Reproducibility (Repeatability) better than ± 2.5% of set point.
  • Steady State metering accuracy of ± 1% of pump output, at single setting of stroke from 10% - 100% (Turn down ratio 10:1).
  • Easily handles viscous fluids. They are compatible with most of fluids.
  • Unlimited dry running capability
  • Simplex and Multiplex arrangements of pumps available for universal use.
  • Heating or cooling jackets for liquid head is also available.
